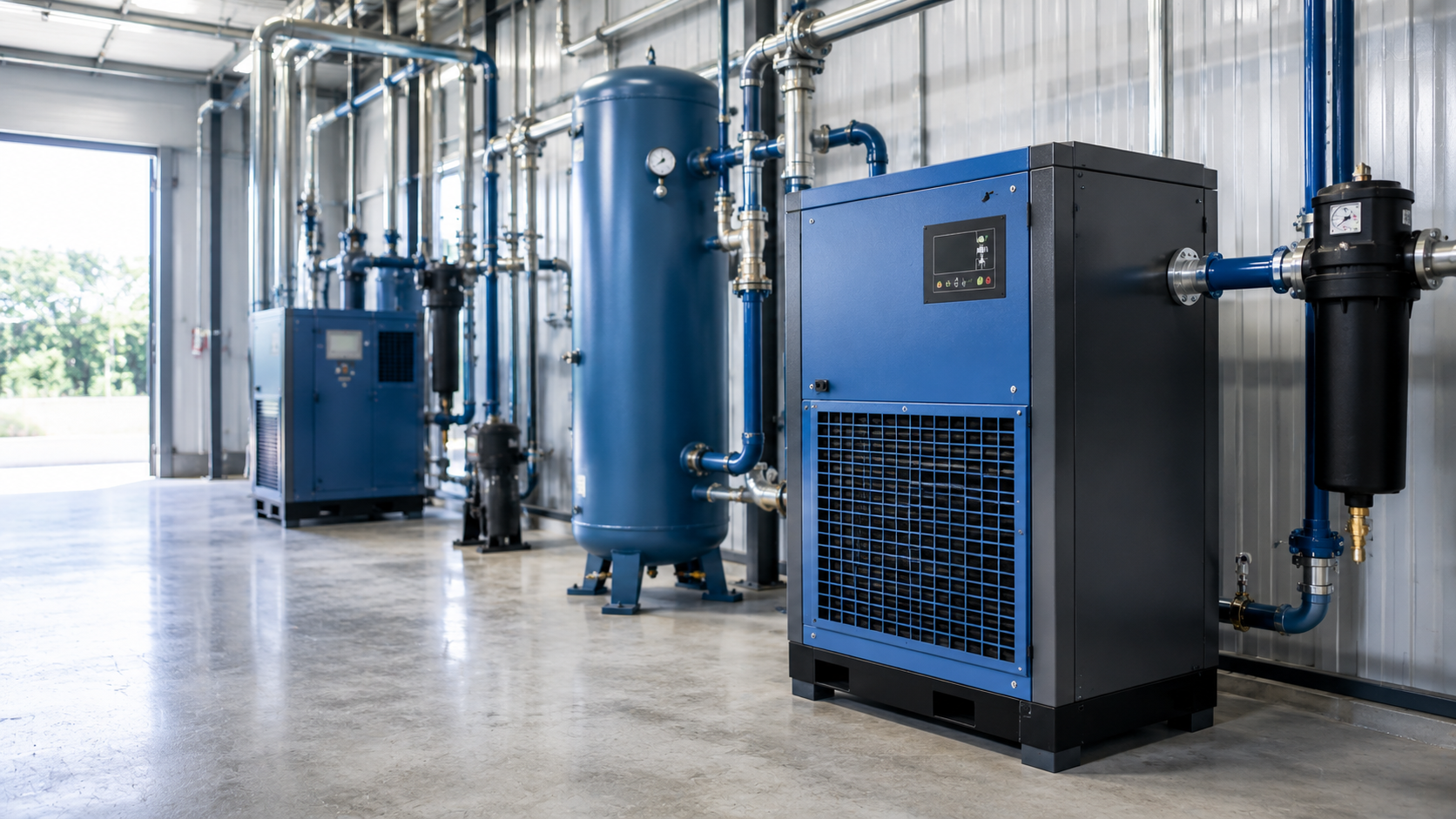

Air Dryer Types Explained: Refrigerated vs Desiccant Dryers
Moisture is one of the most damaging contaminants in compressed air systems, making air dryers a critical component for protecting equipment and maintaining air quality.
Two of the most common dryer types are refrigerated dryers and desiccant dryers — each designed for different applications and air quality requirements.
Why Compressed Air Needs Drying
Compressed air always contains water vapour.
As air cools after compression, this vapour condenses into liquid water, which can cause corrosion, blockages, and damage to downstream equipment.
- Prevents corrosion in pipework and receivers
- Protects pneumatic tools and valves
- Improves air quality at point of use
- Reduces maintenance and downtime
What Is a Refrigerated Air Dryer?
Refrigerated air dryers cool compressed air to a low temperature, causing moisture to condense and be removed.
The dried air is then reheated slightly before leaving the dryer to prevent condensation downstream.
- Typical pressure dew point: around +3°C
- Cost-effective and energy efficient
- Suitable for most industrial and workshop applications
Refrigerated dryers are the most commonly used dryer type.
What Is a Desiccant Air Dryer?
Desiccant dryers use adsorption media to remove moisture vapour from compressed air.
Air passes through a bed of desiccant material that attracts and holds moisture, producing very dry air.
- Typical pressure dew points: -20°C to -40°C (or lower)
- Used where very dry air is required
- Common in food, pharmaceutical, and critical applications
Key Differences Between Refrigerated and Desiccant Dryers
- Refrigerated dryers remove liquid water; desiccant dryers remove vapour
- Desiccant dryers achieve much lower dew points
- Refrigerated dryers consume less energy
- Desiccant dryers are used for higher air quality requirements
The correct choice depends on application, environment, and air quality needs.
Which Dryer Type Is Right for Your Application?
Dryer selection should be based on how the compressed air is used.
- General manufacturing and workshops: refrigerated dryers
- Outdoor pipework or cold environments: desiccant dryers
- Sensitive processes or instruments: desiccant dryers
- Cost-conscious applications: refrigerated dryers
Over-specifying dryers can increase costs without benefit, while under-specifying risks contamination.
Maintaining Air Dryer Performance
Like all compressed air components, dryers require regular attention.
- Ensure drains operate correctly
- Replace filters upstream of dryers
- Monitor pressure drop and dew point
- Service components at recommended intervals
Proper maintenance ensures consistent air quality and system efficiency.
Final Thoughts
Air dryers play a vital role in protecting compressed air systems from moisture-related damage.
Understanding the differences between refrigerated and desiccant dryers helps ensure the correct level of air quality while controlling operating costs.
