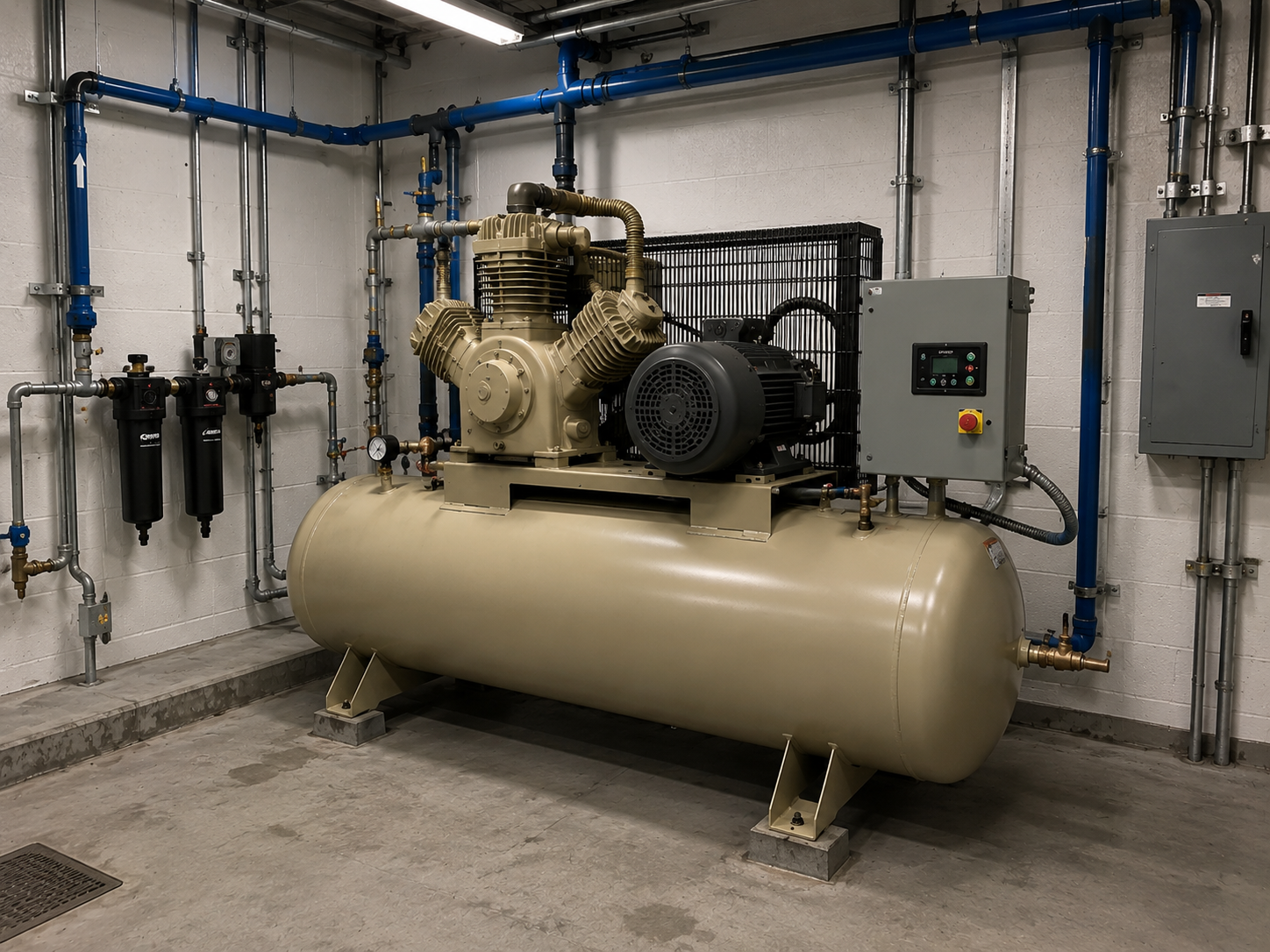

How to Size an Air Compressor Correctly (And Avoid Costly Mistakes)
Choosing the correct air compressor size is critical for efficiency, reliability, and long-term running costs.
An undersized compressor struggles to keep up, while an oversized compressor wastes energy and increases operating costs. Understanding a few key principles helps buyers choose the right solution first time.
Why Compressor Sizing Matters
Compressed air systems must deliver enough airflow and pressure to meet demand — without excessive cycling or continuous overload.
- Undersizing causes pressure drops and downtime
- Oversizing increases energy consumption
- Correct sizing improves efficiency and equipment life
Most compressor problems trace back to incorrect sizing.
Step 1: Calculate Required Airflow (CFM)
Airflow, typically measured in CFM or litres per second, is the most important factor.
Start by identifying all air-using tools and equipment.
- List each tool or machine
- Note the airflow requirement of each
- Identify which tools run simultaneously
Total airflow should reflect peak demand, not average usage.
Step 2: Determine Required Pressure
Operating pressure is equally important.
- Most tools specify minimum operating pressure
- Pressure drop occurs through filters, dryers, and pipework
- Extra pressure is often added to compensate for losses
Correct system design reduces the need for excessive pressure.
Step 3: Understand Duty Cycle
Duty cycle describes how long a compressor runs during operation.
- Piston compressors suit intermittent use
- Screw compressors suit continuous operation
- Exceeding duty limits shortens lifespan
Matching compressor type to usage pattern is essential.
Step 4: Consider Air Storage
Air receivers play a key role in system performance.
- Provide storage for peak demand
- Reduce compressor cycling
- Improve pressure stability
Correct receiver sizing often allows a smaller compressor to perform efficiently.
Step 5: Factor in Air Quality Requirements
Air treatment affects system sizing and performance.
- Dryers introduce pressure drop
- Filters restrict airflow as they load
- Higher air quality requires additional components
Allowing for these factors avoids under-performance.
Common Sizing Mistakes to Avoid
- Sizing for average rather than peak demand
- Ignoring future expansion
- Over-pressurising to mask system problems
- Choosing compressor type based on price alone
These mistakes often result in higher long-term costs.
Piston, Screw, or Full Feature?
Once airflow and pressure are known, compressor type can be selected.
- Piston compressors for low-duty, intermittent use
- Rotary screw compressors for continuous demand
- Full feature compressors for clean, dry air in compact setups
Correct selection improves efficiency and simplifies system design.
Final Thoughts
Correct compressor sizing is the foundation of an efficient compressed air system.
Understanding airflow, pressure, duty cycle, and air quality requirements helps buyers avoid costly mistakes and choose equipment that performs reliably for years.
